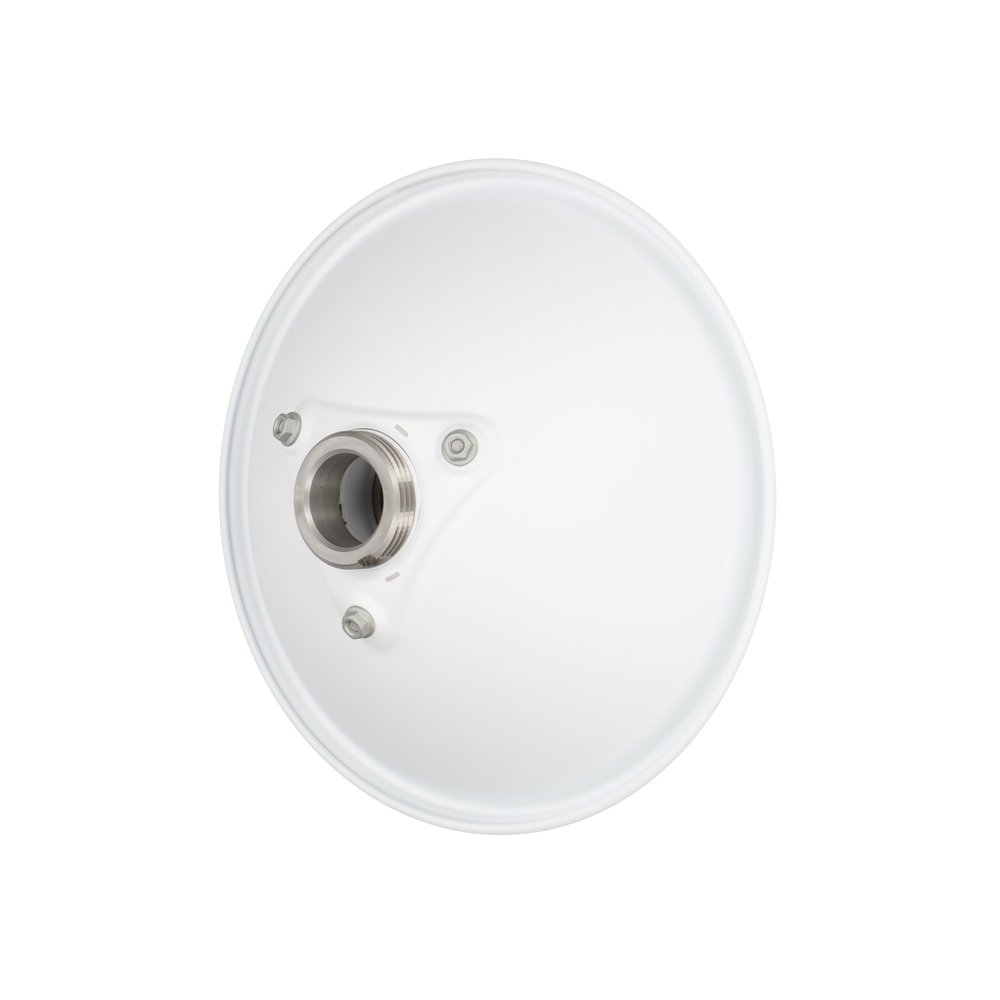

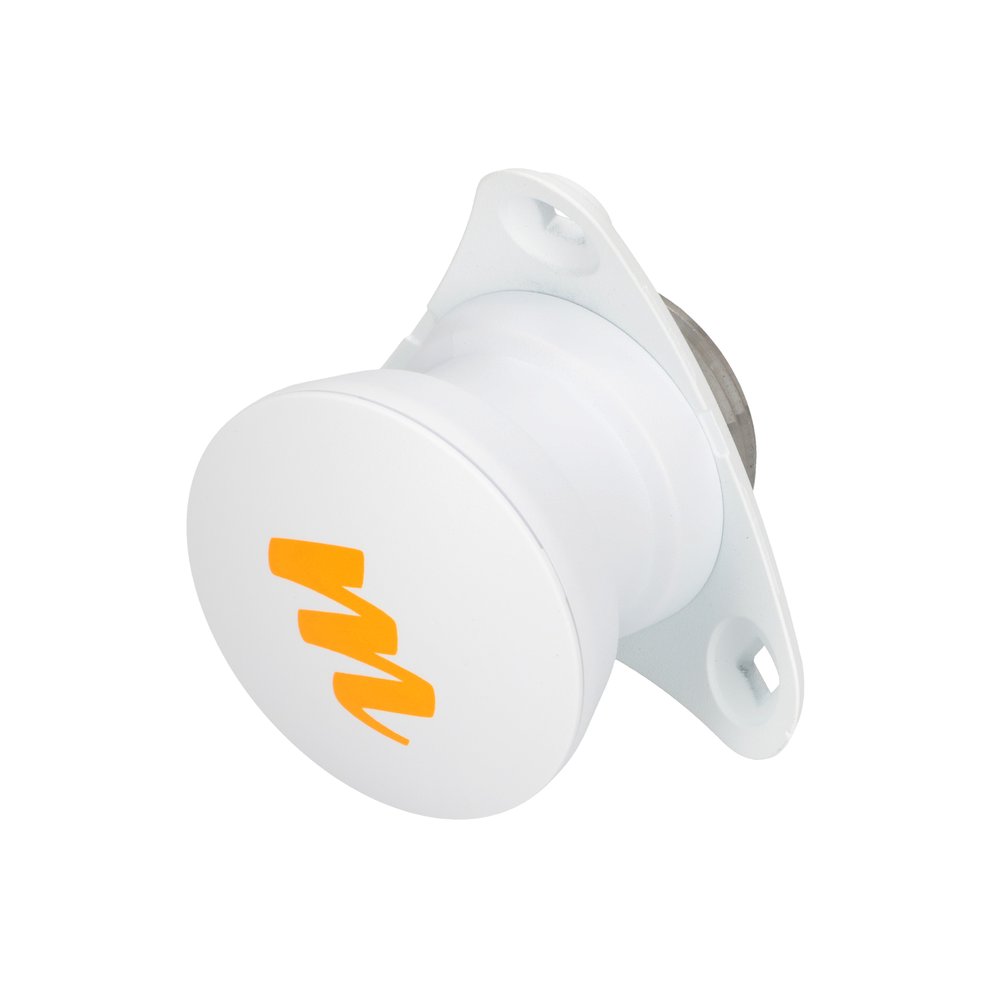

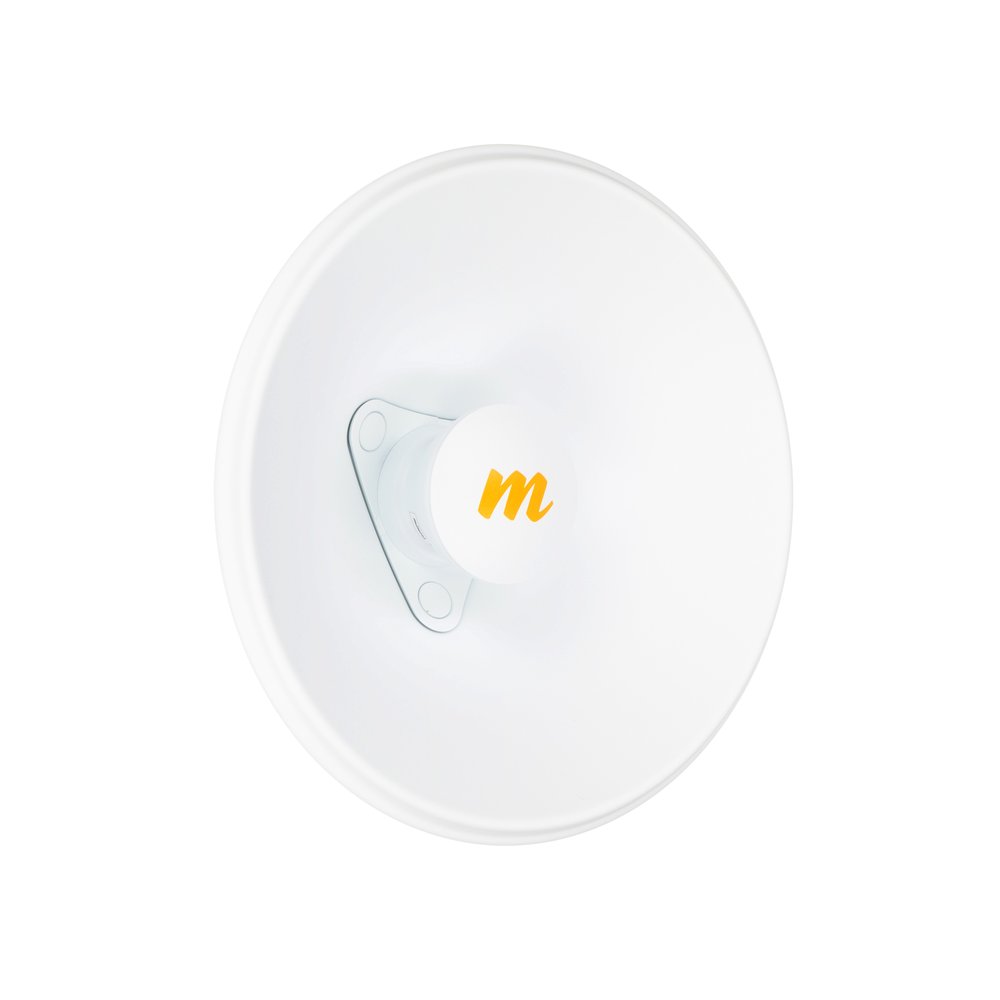

Mimosa N5-X20 Modular Horn for C5x 2-pack, 20dBi, 12st, 4,9-6,4GHz, 270mm

Features / filters
Antenna frequency 4.9-6.4 GHz, 5 GHz, 6 GHz,
Antenna type Directional
Energy gain 10dBi - 20dBi
C5x antenna gain 20dBi
Compatible with brand Mimosa
Front-to-back ratio 35 dB
Horizontal beamwidth 12°
Polarization Double diagonal 45°
Vertical beamwidth 12°
N5-X20
Profit 20 dBi
Polarisation Dual 45º diagonal line
Beam width Symmetrical 12º
FTB (Principal to Reverse Radiation Ratio) >35 dB
FTS (ratio of main to sidereal radiation) >37 dB
Weight 0.77 kg
Dimensions Diameter: 270 mm; Depth: 83 mm
