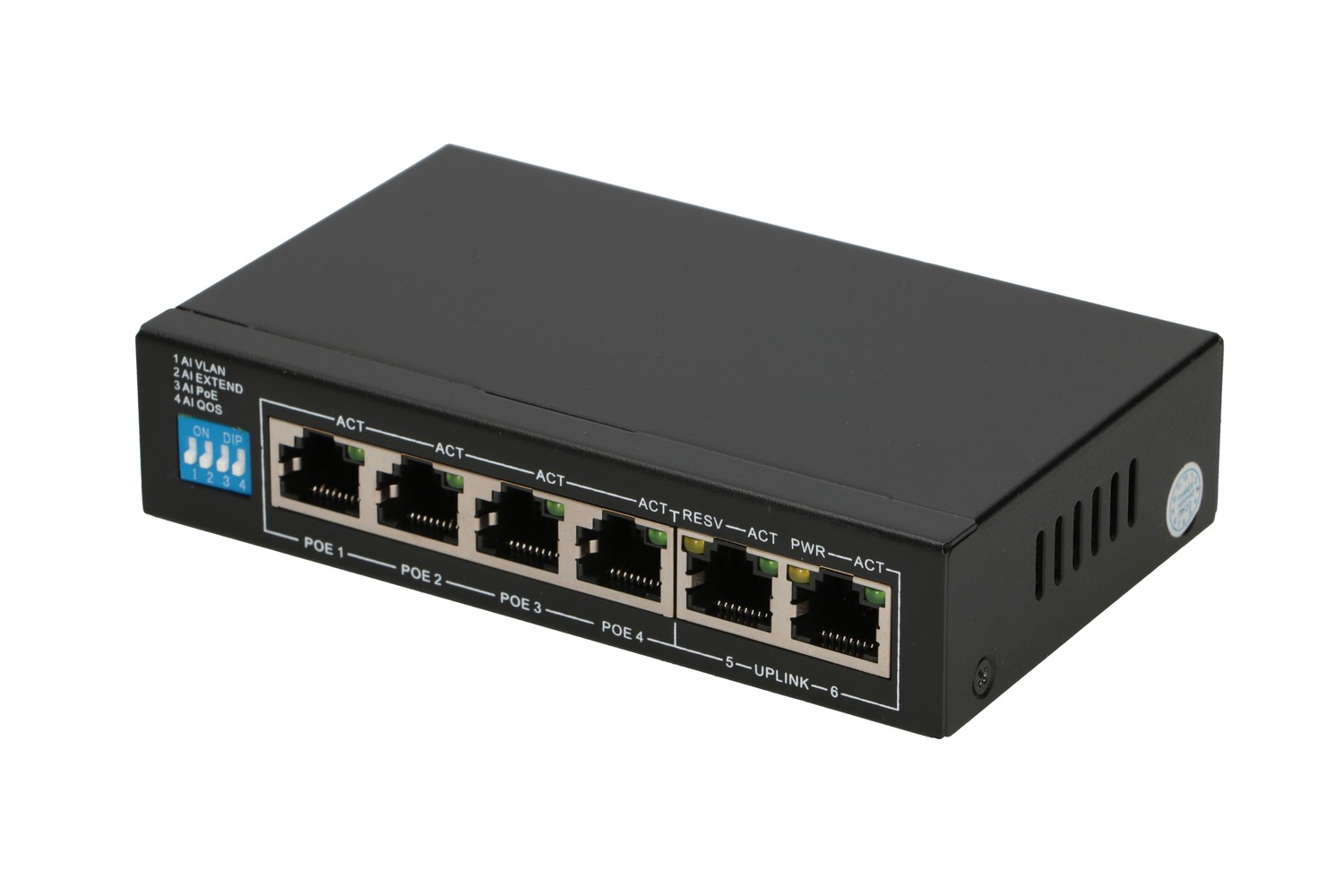

Extralink EUROS V2 PoE Switch 4x 100Mb/s PoE/PoE+ 2x RJ45 Uplink 100Mb/s 60W

4 operating modes - VLAN, EXTEND, AI PS, AI QoS
Support for IEEE 802.3af/at standards
Store-and-forward
Auto MDI/MDIX support
Power circuit protection - to protect terminal equipment
Fanless design - energy saving / environmental protection
Energy saving function on unused ports
SPECIFICATION
Features / filters
LAN standard Fast Ethernet 10/100Mb/s
Number of LAN ports 6x [10/100M (RJ45)]
Number of PoE ports 4x [802.3af/at (100M)]
Management No
Power (W) 60
Switching layer 2
Type of case Desktop
Basic technical parameters
Speed 100Mb/s Full Duplex, 10 or 100Mb/s Half Duplex
Performance Throughput: 1.2Gb/s (non blocking)
Interfaces 4 ports 10/100Mb/s PoE RJ45 (Port 1~ Port 4)
2 ports 10/100Mbps RJ45 Uplink (Port 5~Port 6)
Network delay (100Mbps) Maximum 20 μs (using 64 byte packet)
Network protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Frame filtering and transmission speed 148,800pps
LED lights Power, LINK/ACT
Pins PoE 1/2(+), 3/6(-)
Power supply Maximum power for a single port: 30W
External power supply: 60W
Dimensions 125mm x 75mm x 27mm
Weight 0.5 kg
Working environment Ambient temperature: 0°C~40°C
Ambient humidity during operation: 10%~ 90%, non-condensing
EMC CE Class B
FCC Part 15 Class B
VCCI Class B
C-Tick
Certificates CE/ROHS/FCC/CCCC
