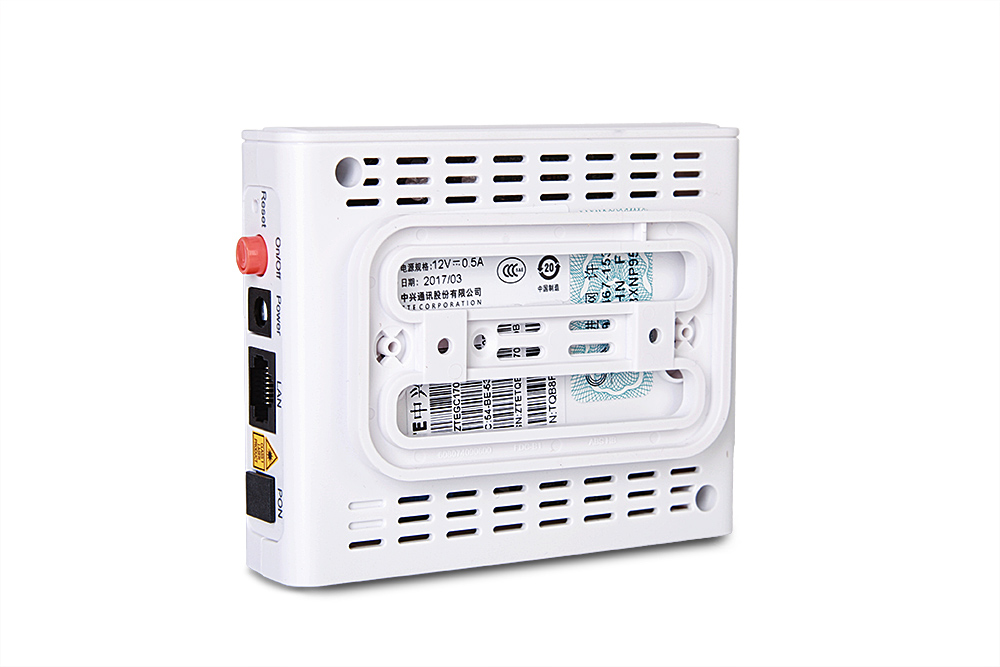

ZXA10 F601 ONT 1x GPON, 1x RJ45 1000Mb/s

Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
PON standard GPON
GPON interface 1 x SC/PC or SC/APC
Download: 2.448 Gb/s
Transmission: 1,244 Gb/s
Transmission range: Up to 20km
Subscriber Interface 1 x 10/100/1000 Base-T
Half / full duplex, Automatic MDI/MDIX, Automatic negotiation
Modes of operation Bridge
Wavelength Download: 1480 - 1500 nm
Transmission: 1290 - 1330 nm
Sensitivity -28 dBm
Optical transmission power 0.5 to 5 dBm
Power consumption Up to 7W
Dimensions 110 x 90 x 53 mm
Working conditions Temperature: 0°C - 40°C
Humidity: 5% - 95%
Weight 190 g
Power supply 12 V DC
Installation To be placed / On the wall
Features of GPON 8 x T-CONT, 32 x GEM port
Functions Supported services: Internet, IPTV
MAC address plate: 256
Multicast: IGMP v1/v2/v3 Snooping
Multicast Group: 256
Support VLAN (802.1Q, 802.1P, 802.1ad)
Multicast
QoS
Management Local Web OMCI
